TOOLS FOR BETTER, EASIER, FASTER, CHEAPER

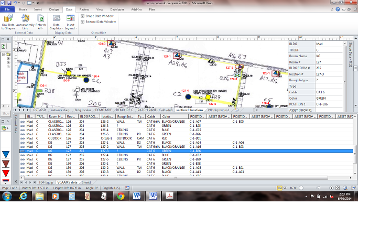

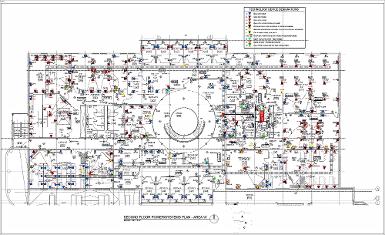

INTERACTIVE FLOOR PLAN CREATION

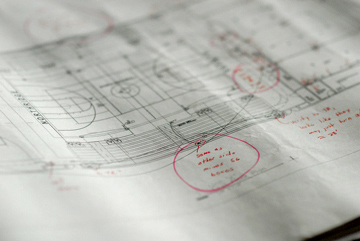

  • When all you have is paper prints

  • Creating integrated electronic files
  • each asset and information for that asset is shown on the same screen
IoT (Internet of Things)
  • Can the current infrastructure handle the increased loads and processing requirements?
  • planning for future is easier when you know what you have andwhere it is!
DISCOVERY
  • Assists to locate all technology Assets in existing legacy facilities
  • defines  labeling of existing faceplates and racks

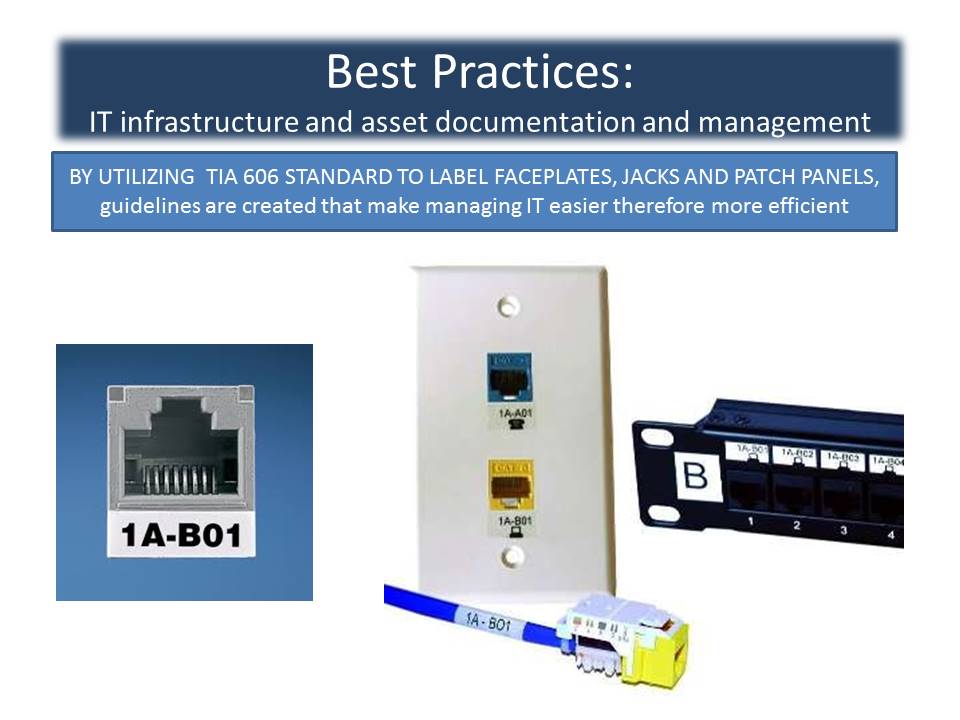

FACEPLATE RE-LABELING
  • Creates sustainable schematic for existing legacy cabling
  • Standards based schema for future deployments

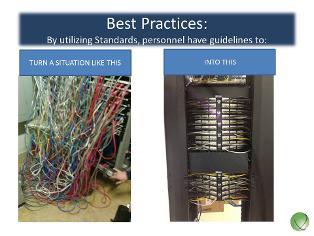

RACK ELEVATION DRAWINGS
  • Create drawings of existing technology racks and cabinets
  • label each "asset" to clearly define location
  • standards based labeling scheme
SWITCH PORT DISCOVERY
  • locate each end of patch cord
  • electronic, modifiable file, assists with troubleshooting and planning
  • completes the missing link between network management and cabling
RECERTIFICATION of Existing Cabling
  • Verify and validate that existing legacy cabling
  • verify cabling is the proper transport for today's and tomorrows applications: 1G, 10G, 5Ghz

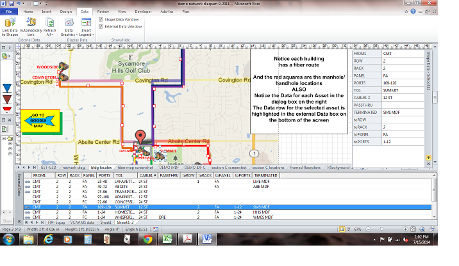

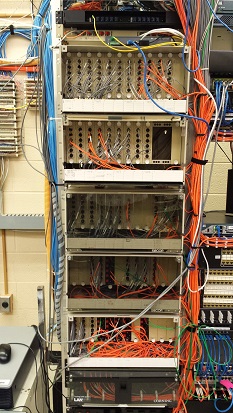

FIBER BACKBONE DISCOVERY AND LABELING
  • Find each end of each fiber strand
  • Label each end of fiber
  • Verify existing fiber is proper transport for today's and tomorrows applications: 10G, 40G, 100G
HARD COPY POSTERS
  • Newly creating drawings mounted to assist with troubleshooting and managing moves, adds, and changes
  • mount in TR/IDFs in order to have all stakeholders notate changes



ELECTRONIC CHANGE FORM
  • Create a methodology to incorporate all changes in electronic format
  • All stakeholders, vendors, and administrators can access to single format
ENHANCE = BETTER
  • Enhance the legacy and future systems infrastructure
  • create a standards based documentation system
  • Makes troubleshooting better
BUILD=EASIER
  • Build systems so documentation is provided in electronic formats
  • electronic formats allow for easier verification and collaboration
  • Makes troubleshooting easier
DESIGN = FASTER
  • Design systems with the standards based tools
  • Stakeholders are best served utilizing best resources to design solutions
  • Makes troubleshooting is faster
MAINTAIN = CHEAPER
  • Maintaining legacy systems, if done correctly will benefit all stakeholders
  • Maintaining documentation is critical in maintaining systems
  • Makes troubleshooting cheaper
